See Better With 2 Eyes

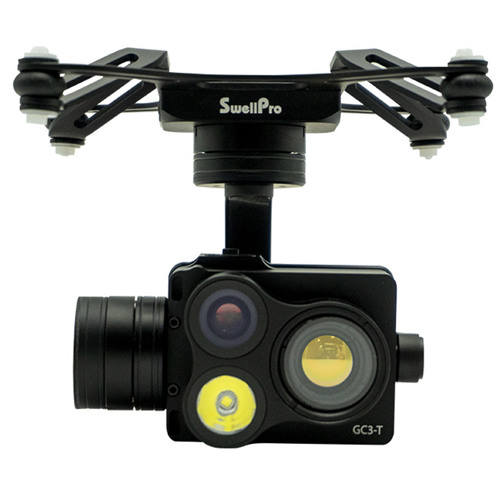

GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously. Use the thermal imaging to identify the object of interest, then quickly switch to the low-light mode to better identify the object with more color details. The integration of GC3-T with SplashDrone 4 empowers lots of industries to accomplish their missions smarter and faster with far less risk and cost.
Thermal Camera
The thermal infrared camera features high resolution (640 x 512) and high sensitivity (<= 50mk@f/1.0) infrared thermal images. It can detect temperature ranging from -20 Degree C to 150 Degree C / -4 Degree C to 932 Degree C with an accuracy of +/-3 Degree C in real time.
Low-Light Camera
The low-light camera can capture full HD imaging in the dark environment when the regular camera cannot return any images. The dimmable LED flashlight can still maintain the vision in total darkness. With the low light camera, whenever you find the object of interest using the infrared thermal camera, you can always switch back to give a visual confirm of the object.
Adjustable LED Flashlight
The built-in dimmable LED flashlight literally turns night into day, enabling the low-light sensor to capture the full picture in total darkness.
SDfly App
A User-friendly Temperature Reader
Temperature OSD
Real-time on-screen display of the maximum, minimum, average and center temperatures detected by the thermal camera.
Temperature Alarm
Receive alerts with different color marks on the image when the object temperature goes above or below a set limit.
Color Palettes
Select different high contrast color palettes in various conditions to quickly find obvious anomalies.
All-Weather Detecting
With the SwellPro waterproofing technology and the compatibility with the powerful SplashDrone 4 flight platform, you will get excellent aerial thermal imaging in any harsh weather conditions.
Use Cases
Search & Rescue
The SplashDrone 4 can be deployed and cover a lot of ground or water area in just a few minutes. With the GC3-T,pilots can easily locate missing people from a distance and immediately commence rescue operation, even in total darkness.
Firefighting
Firefighters used SplashDrone 4 and GC3-T to do a quick aerial survey of the area, allowing them to come up with strategy to put out the fire. They do not only help firefighters put out the fire fast, but also keep them safe while out in the field.
Power Line Inspection
Electrical installations can more be easily inspected and checked for excessive heat spots, defective parts, and weak connections from a safe distance using the SplashDrone 4 and GC3-T thermal camera, eliminating any requirement for bulky devices or placing lives in danger.
Solar Panels Maintenance
The SplashDrone 4 and GC3-T can inspect a large solar field in a fraction of the time and cost from up in the air. With high precision capabilities, the thermal sensor can monitor defects in solar cells and get accurate measurements of other critical issues on a more regular basis.
Law Enforcement
Thanks to the SplashDrone 4 and GC3-T,law enforcement officers can monitor unfolding crime scenes and locate active shooters while maintaining a safe distance. This gives officers real-time, actionable intel to access the threat while formulating a strategy for their approach.
Hunting
The aerial thermal view from GC3-T can help hunters quickly get an overview of a large area and detect the beast in the forest or in the field at a great distance. The APP's OSD with GPS coordinates in the video stream broadcasts the current position of the beaters.
- -
