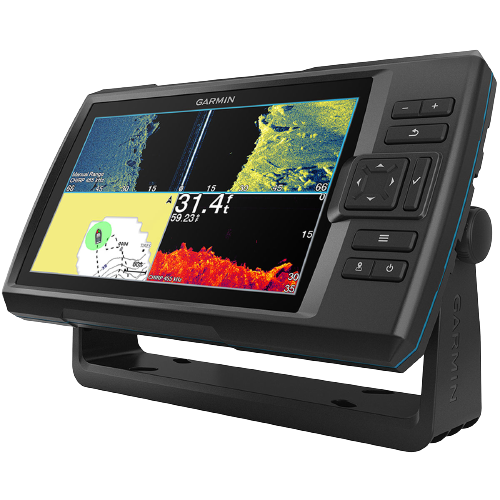

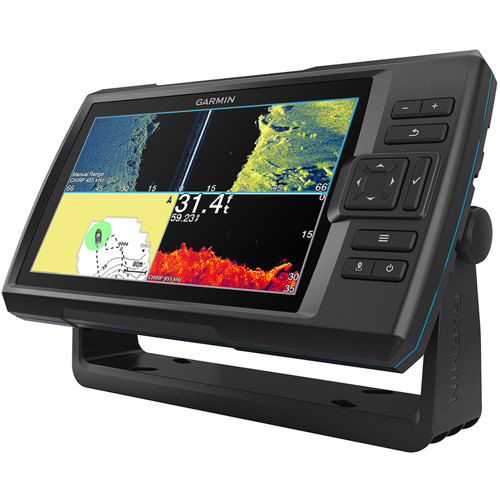

Garmin STRIKER Vivid 9sv Fishfinder U.S. with GT52HW-TM Transducer

Garmin STRIKER Vivid 9sv Fishfinder U.S. with GT52HW-TM Transducer

THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder with transducer.

BUILT-IN SONAR

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9” fishfinder.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

WI-FI CONNECTIVITY

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

Choose Your Sonar. The Choice Is Yours:
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv Fishfinder with transducer. The sonar color you pick says a lot about your fishing style. Good thing there are multiple new vivid options (for options see SKU's: GRMSV4TR, GRMSV5TR, GRMSV7TR, GRMSV7FF). What a view. Use the included transducer to get CHIRP traditional and ClearVu sonars. Never lose a hot spot again. Use waypoint marking to find your way back. What's under the water's surface looks pretty good as 1' (30.5cm) contours, just saying. Wi-Fi connection (1) on land opens up a world of possibilities on the water.

A New Way to See What's Under the Water:
Clear, Colorful Sonar: Choose from multiple new vivid color options to see fish and structure in maximum contrast and clarity on your 9" (22.8cm) Fishfinder. Built-In Sonar: Use the included GT52HW-TM Transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVu scanning sonar. Waypoint Marking: To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back. High-Sensitivity GPS: Plan and create routes and view your boat's speed on your Fishfinder using high-sensitivity GPS. Quickdraw Contours: Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv Fishfinder, you can store up to 2 million acres of maps with 1' (30.5cm) contours (2). Connect to the ActiveCaptain app (1) to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community. Included Hardware: The STRIKER Vivid 9sv Fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable. The Fishfinder measures 11.1" x 6.5" x 2.4" (28.2cm x 16.5cm x 6.0cm), has a WVGA color display measuring 4.4" x 7.8" (11.2cm x 19.8cm); 9.0" (22.8cm) diagonally, with a resolution of 800 x 480 pixels. The STRIKER Vivid 9sv Fishfinder has a keyed input, weighs 2.4 lbs. (1.1 kg), a waterproof rating of IPX7, and has mounting options for flush or tilt/swivel.

Maps & Memory: 5,000 waypoint/favorites/locations, 50,000 track points, 50 tracks, and 100 navigation routes. Sensors included a traditional 50/77/200 kHz built-in receiver, CHIRP (mid and high), ClearVu 260/455/800 kHz, GPS, and supports WAAS. Optional map support includes Garmin QUICKDRAW Contours. Sonar Features & Specifications: Built-in traditional sonar (dual frequency/beam), and ClearVu with traditional frequency of 50/77/200 kHz, CHIRP (mid and high), and ClearVu 260/455/800 kHz. Bottom lock (shows return from the bottom up) and water temperature log. Connections: Includes two 4-pin transducer port and Garmin Wi-Fi Network (local connection). Electrical Features: Include power input of 12 to 20 Vdc, typical current draw is 0.67 A, maximum current draw is 1.5 A, power consumption is 8.0, and transmit power is 500 W (RMS).

Fishfinder Features: Include split-screen zoom, fish symbol ID (helps identify fish targets), autogain technology (minimizes clutter; maximizes targets), has adjustable depth line (measures depth of underwater objects), A-Scope (real time display of fish passing through transducer beam), water temperature sensor and depth range shading. Included with the STRIKER Vivid 7sv Fishfinder are a GT52HW-TM Transducer, power/data cable,12-pin to dual 4-pin transducer adapter cable, tilt/swivel mount, hardware, Garmin bumper sticker, and documentation.

Note:
(1) Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7sv Fishfinder; see Garmin.com/ble
(2) Does not contain detailed mapping. Content is user-generated
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
